Takeuchi Tb135 Hydraulic Excavator Caterpillar Bat Crawler Dozer Tractor
Current Price: $3850.00 | Bid $3900.00 Now! | # of Bids: 9
TAKEUCHI TB135 HYDRAULIC EXCAVATOR CATERPILLAR BAT CRAWLER DOZER TRACTOR
WE FINANCE!! WE EXPORT WE HELP YOU SHIP NO RESERVE
More Photos
Equipment
Condition: Used
Make: Takeuchi
Model: TB135
Hours: 2839
Serial Number: 135156XX
Drive: HYDRSTATIC
Excavator Type: Small
Max Dig Depth: 11'1'' - 12'
Net Horsepower (HP): 21 - 30
Operating Weight: 7,001 - 8,000 lbs
Description

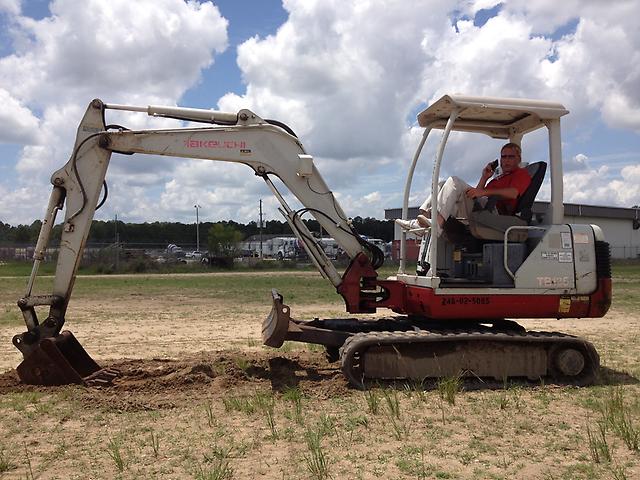

TAKEUCHI 135 HYDRAULIC
EXCAVATOR RUBBER TRACKED
NICE TRACKS
incredible machine!!!!!!!
CALL 301 800 5600 INTERNATIONAL
CALLERS DIAL 011
WE FINANCE NOTHING DOWN WITH
APPROVED CREDIT LOW RATES
WE ALSO LEASE WITH $1 BUYBACK
THIS IS A REAL NO RESERVE ABSOLUTE
AUCTION SELLS TO HIGHEST BIDDER
MACHINE RUNS AND OPERATES GREAT
QUICK ATTACH OR REMOVABLE BUCKET
THIRD VALVE AUXILLARY HYDRAULICS
TAKES MANY ATTACHMENTS
OROPS
HAS IT ALL
CLEAN MACHINE
COMPARE TO OTHERS FOR SALE FOR
$25000-$30000
diesel engine
electronics work great
steers and tracks great
all around great machine
EXTREMELY CLEAN
LOW HOURS 2839
READY FOR WORK
JUST CAME OFF MAJOR JOB COMPLETION
CLOSE TO MAJOR PORT
WE WILL HELP YOU EXPORT THIS
EXCAVATOR
EXCAVATOR IS FOR SALE LOCALLY
PLEASE CALL 1-301-800-5600 OR
1-304-279-9744
WITH ANY QUESTIONS
Selected Dimensions
Boom/Stick Option (HEX) 1
A. Shipping Length of Unit
16.6 ft in
5053.6 mm
J. Max Loading Height
12.5 ft in
3810 mm
K. Max Reach Along Ground
17.5 ft in
5334 mm
L. Max Vertical Wall Digging Depth
8.6 ft in
2615.2 mm
M. Max Digging Depth
11.2 ft in
3404.6 mm
Dimensions
B. Width to Outside of Tracks
5.3 ft in
1624.6 mm
D. Length of Track on Ground
5.4 ft in
1652 mm
E. Ground Clearance
0.97 ft in
294.7 mm
G. Height to Top of Cab
8 ft in
2438.4 mm
H. Tail Swing Radius
4.6 ft in
1396 mm
Undercarriage
N. Shoe Size
14 in
355.6 mm
Specification
Engine
Make
Yanmar
Model
3TNV88-QTB
Gross Power
27.8 hp
20.7 kw
Power Measured @
2300 rpm
Displacement
100 cu in
1.6 L
Torque Measured @
1400 rpm
Max Torque
79 lb ft
107.1 Nm
Number of Cylinders
3
Operational
Operating Weight
7831 lb
3552.1 kg
Fuel Capacity
13.5 gal
51.1 L
Cooling System Fluid Capacity
1.4 gal
5.4 L
Hydrauilc System Fluid Capacity
22.5 gal
85.2 L
Engine Oil Capacity
1.3 gal
4.8 L
Operating Voltage
12 V
Alternator Supplied Amperage
40 amps
Hydraulic System Relief Valve Pressure
3000 psi
20684.3 kPa
Hydraulic Pump Flow Capacity
19.8 gal/min
75 L/min
Swing Mechanism
Swing Speed
9.2 rpm
Undercarriage
Shoe Size
14 in
355.6 mm
Number of Carrier Rollers per Side
1
Number of Track Rollers per Side
4
Ground Pressure
3.9 psi
26.9 kPa
Max Travel Speed
2.9 mph
4.7 km/h
Boom/Stick Option (HEX) 1
Shipping Length of Unit
16.6 ft in
5053.6 mm
Max Digging Depth
11.2 ft in
3404.6 mm
Max Reach Along Ground
17.5 ft in
5334 mm
Max Loading Height
12.5 ft in
3810 mm
Max Vertical Wall Digging Depth
8.6 ft in
2615.2 mm
Dimensions
Width to Outside of Tracks
5.3 ft in
1624.6 mm
Height to Top of Cab
8 ft in
2438.4 mm
Ground Clearance
0.97 ft in
294.7 mm
Tail Swing Radius
4.6 ft in
1396 mm
Length of Track on Ground
5.4 ft in
1652 mm
